BALL AND SEAT COMBINATIONS

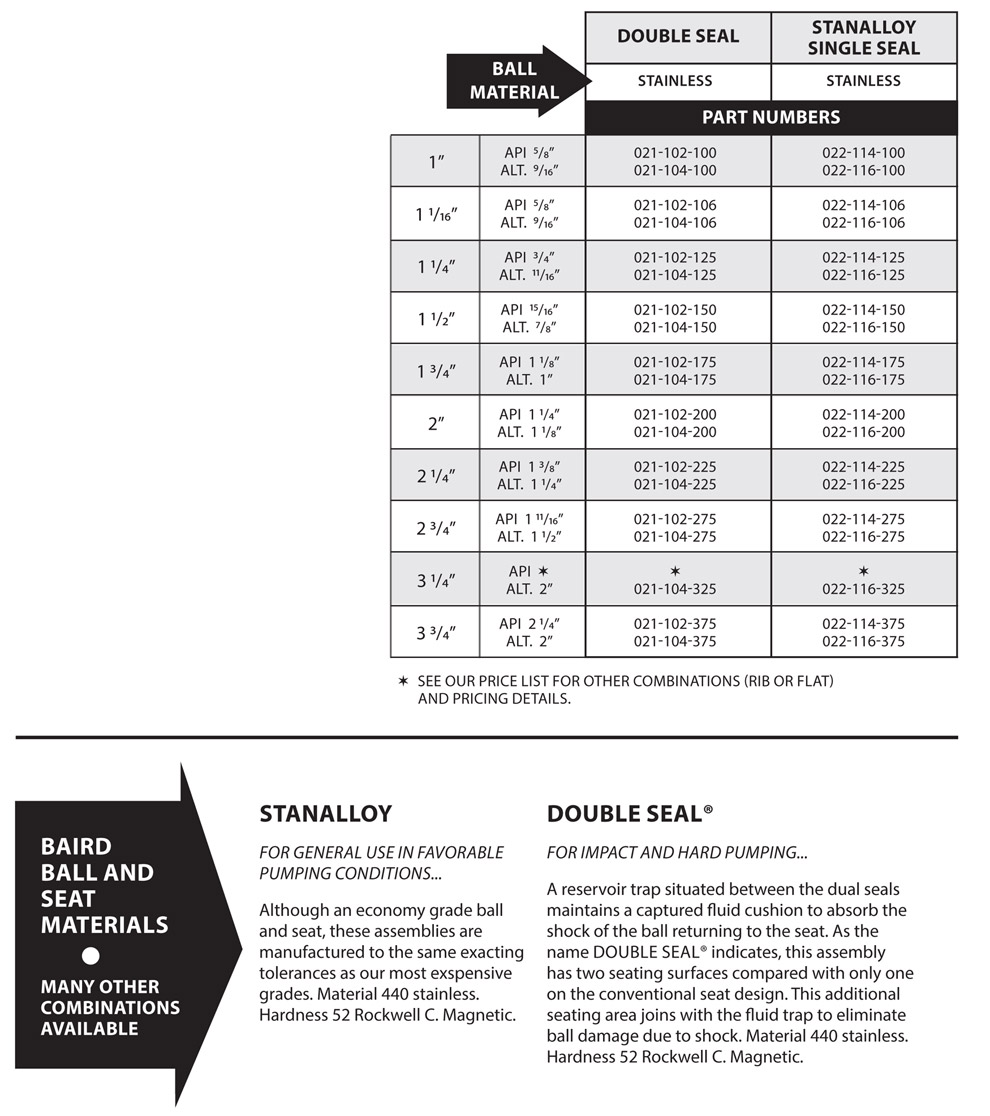

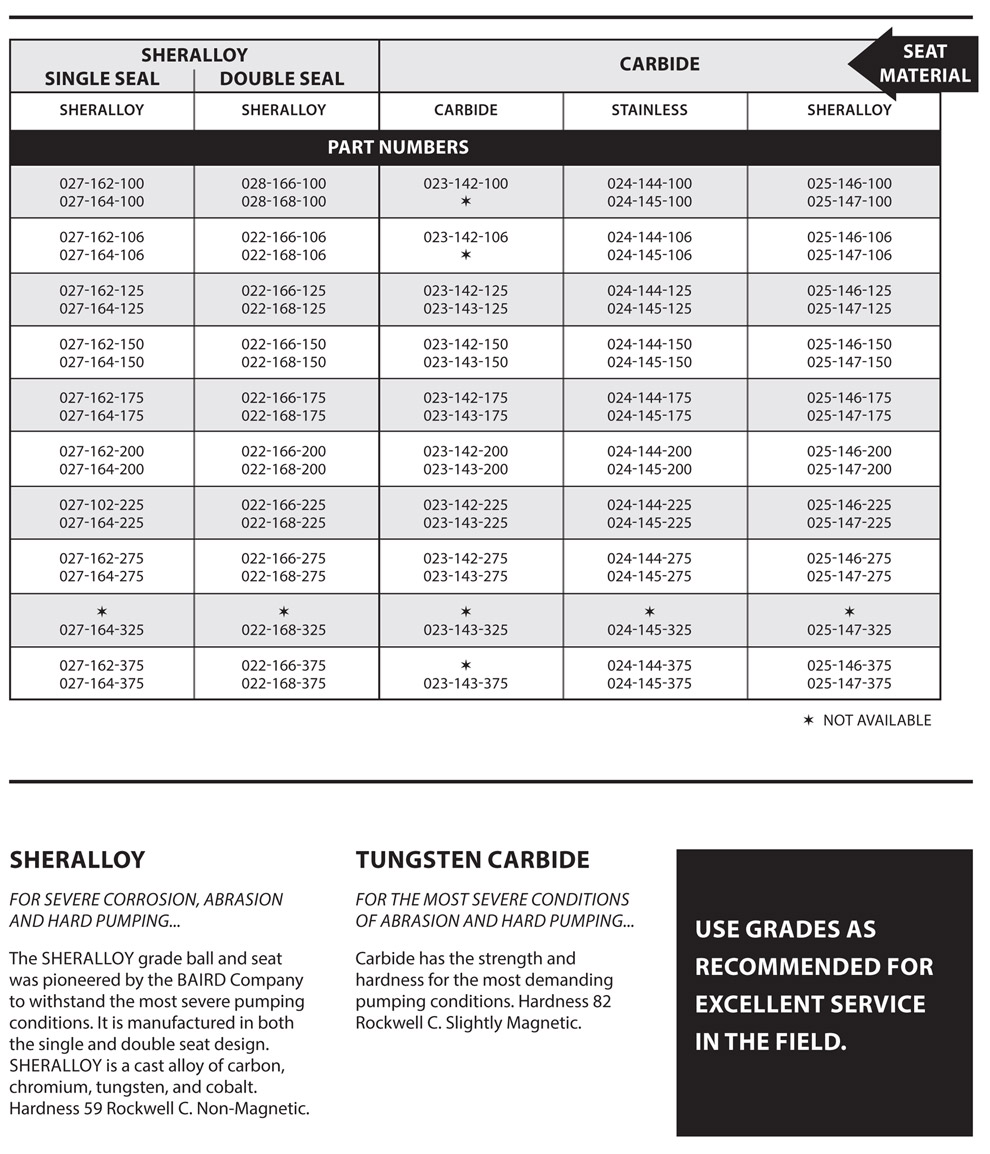

API-FLAT TYPE BALLS AND SEATS FOR BOTTOM HOLE PUMPS

Print This Page

Back to Top

TO SELECT THE CORRECT ASSEMBLY, ALL WELL CHARACTERISTICS, SUCH AS CORROSION, ABRASION AND SHOCK, SHOULD BE CONSIDERED. THE CORRECT ASSEMBLY ASSURES A LONGER SEAL BETWEEN BALL AND SEAT ‚ RESULTING IN LONGER PUMP RUNS AND LONGER PROFITS.
