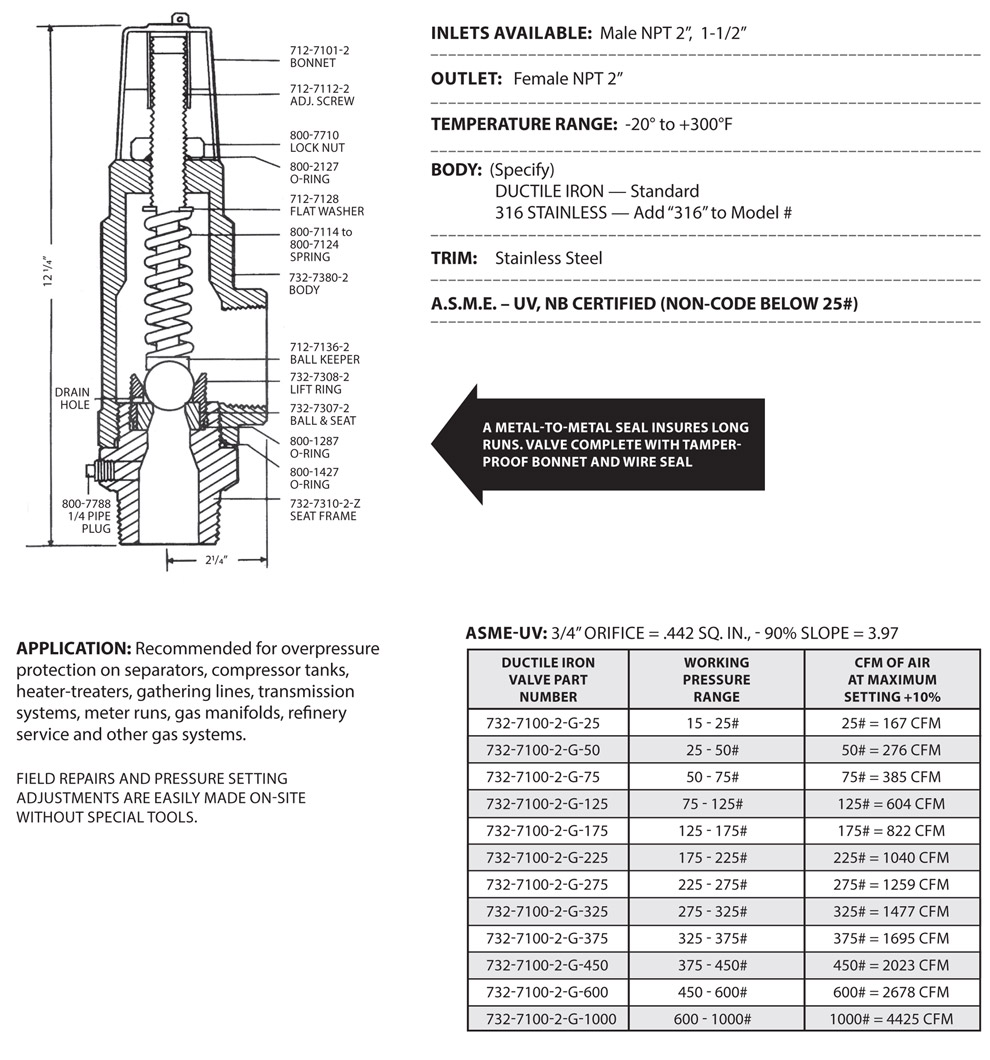

2” GAS VALVE

732-7100-2-G - *The A.S.M.E. gas valves manufactured by Baird Manufacturer are designed to discharge directly to the atmosphere only.

Print This Page

Pressure: 15-1000# Volume to 4425 CFM

(Non-code Below 25#)
