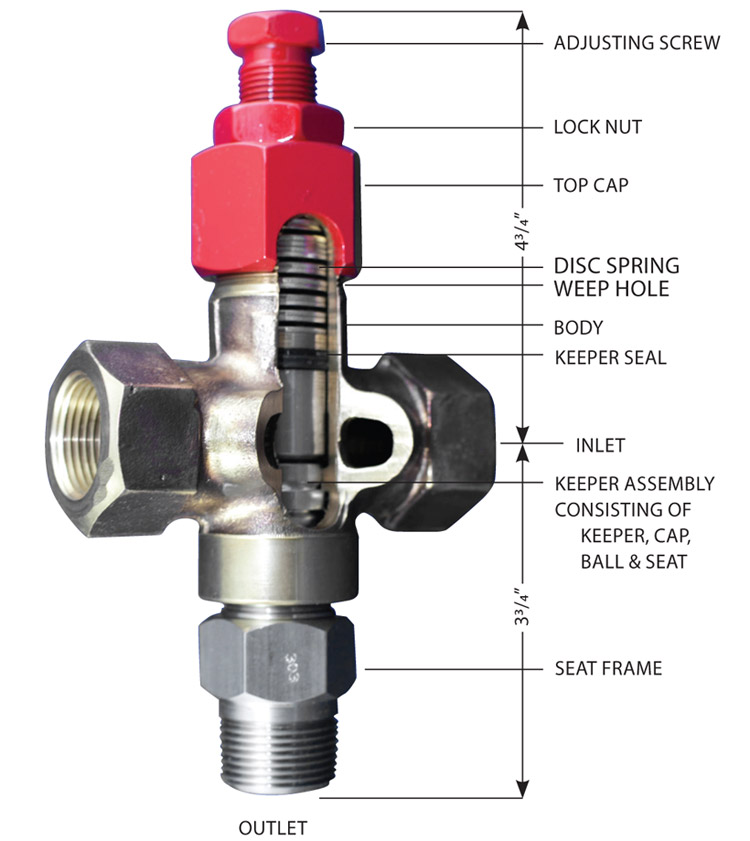

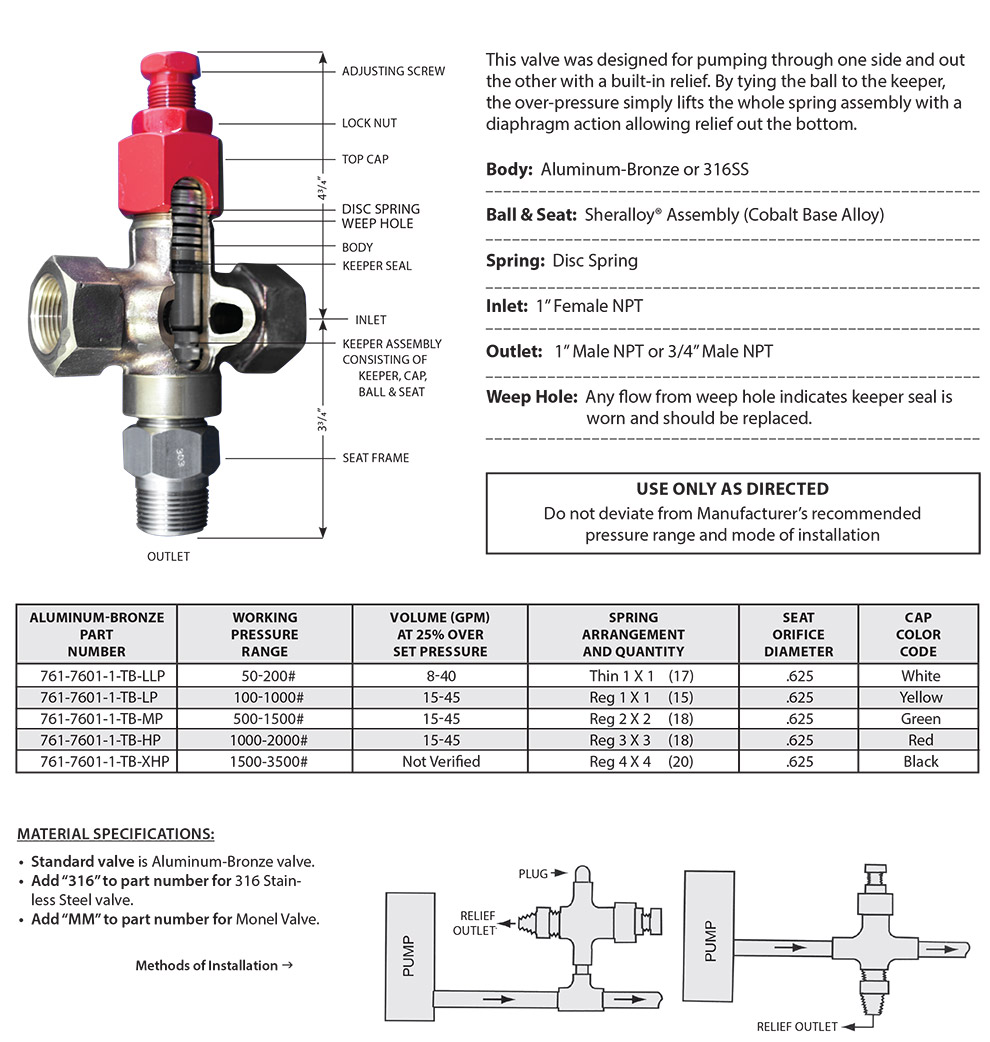

1” BY-PASS LIQUID RELIEF VALVE
(TIED BALL)

761-7601-1-TB

Print This Page

Medium Pressure ---- Diaphragm Action ---- Medium Volume

To ---- 3,500# To ---- 55 GPM
